    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations

    Ask Lasest Price
    Brand Name : CIMC
    MOQ : 1 Unit
    Price : $37,440.00/pieces 1-4 pieces
    • Product Details
    • Company Profile

    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations

    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    Product description:CIMC Linyu series concrete mixer trucks cover all products in the mixing industry. The chassis adopts the special chassis of mixer trucks of major truck brands in the world. Different upper parts manufacturing solutions are customized according to different chassis requirements to achieve the best matching of the whole vehicle and truly achieve the widest range of products.
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations

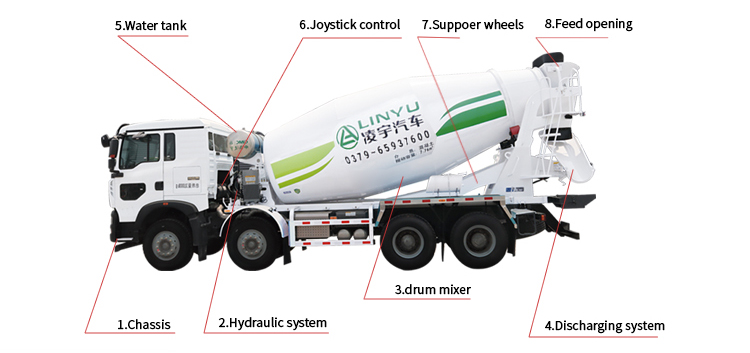

    Product Introduction
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations

    1.Professional design, Higher quality
    The tank body adopts an innovative isometric design, with a lower center of gravity and larger capacity; the material can be selected from low-alloy high-strength structural steel, high-strength steel, and high-performance wear-resistant steel, and the service life is twice that of general manufacturers. Patent number: ZL200820069340.X
    2.Special steel, Multi phase stirring
    Blades use a "The corrected logarithmic spiral curve" for multi-phase 3D stirring, with fast feed/discharge, good concrete homogeneity, minimal accumulation, and <0.5% residual. Cold-pressed from a special mold, they're made of the same wear-resistant material as the cylinder, ensuring synchronous wear and a lifespan over 150,000m³. Patent number: ZL200820069338.2
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations

    3.Multiple configurations, More intelligent
    It can be equipped with intelligent systems such as electronically controlled constant speed, intelligent anti-collision, intelligent weighing, remote control, waterway metering, tank mouth sealing, etc., which can reduce the labor intensity of operators and effectively improve the convenience and safety of vehicle use.

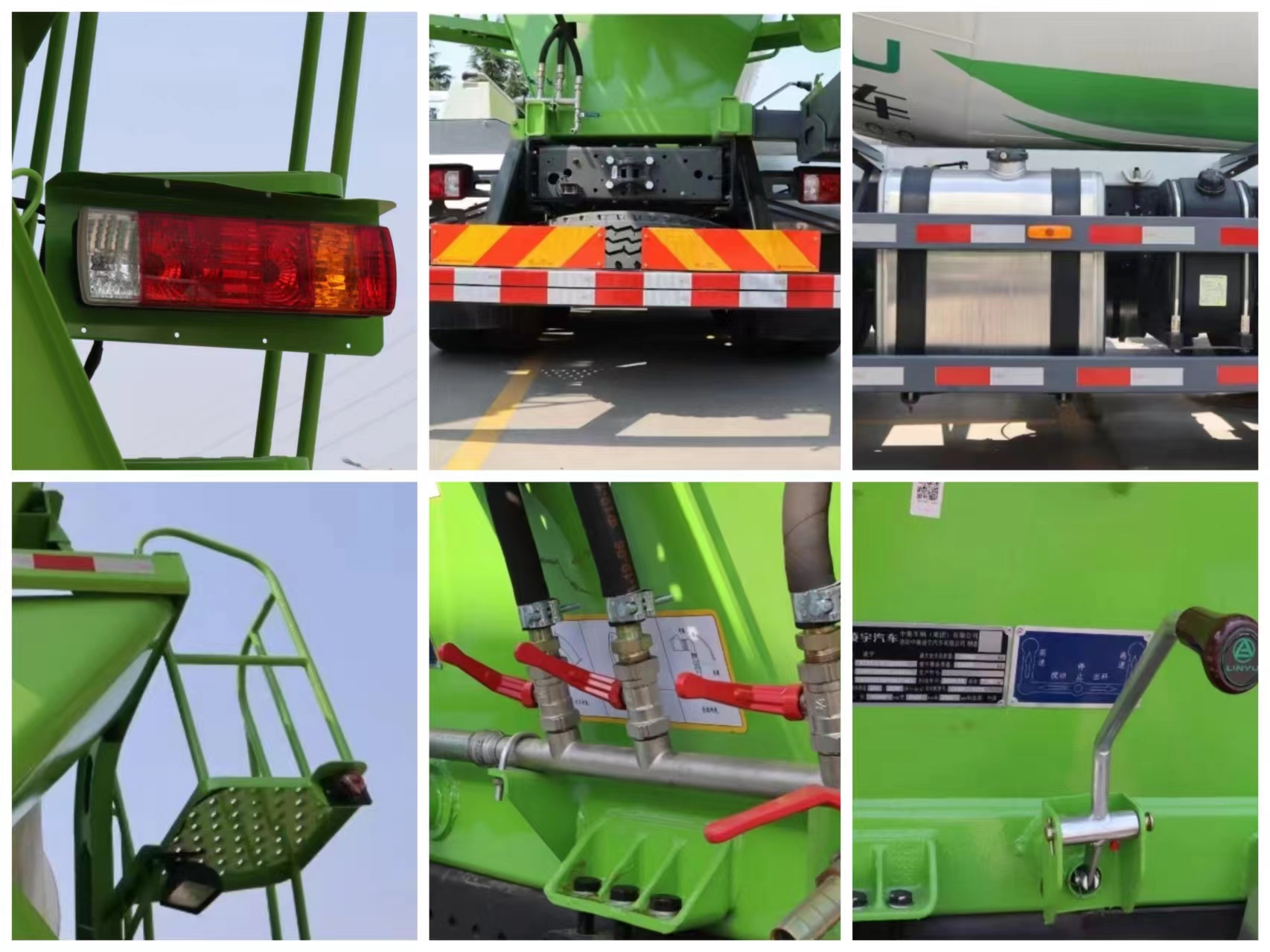

    4.Humanized design, More safer
    ①Equipped with a high-power rear work light for safe nighttime construction, ensuring personnel and vehicle safety.
    ②Anti-slip steps and knurled handrails ensure safe footing and grip. Arc-shaped side guards with rubber sealing strip enhance safety.
    ③Clear warning signs on the body prevent misoperation
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    Smart Factory, Ensure Product Quality
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations


    1.LASER CUTTING
    Laser cutting replaces the original "shearing, cutting, drilling, cutting and grinding" processes to achieve precise cutting;
    small error, high precision, energy saving and consumption reduction, environmental protection and no pollution.


    2.INTELLIGENT WELDING
    Through the automatic feeding system + 3D laser tube cutting machine, a series of production processes such as automatic tube
    feeding, cutting, coding, unloading and conveying are realized.
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    3.AUOMATIC PAINTING
    Connect the left and right stations in an orderly series through the suspension conveying method, the automatic heavy conveying system and intelligent central control inter connection system, and realize the automatic and intelligent electrostatic powder spraying on the special vehicle.The production cycle is shortened by 90.6%, organic volatile matter is "zero emission".
    4.INTELLIGENT FINALLY ASSEMBLY
    This line is divided into three systems: AGV intelligent transfer system, ground drag chain conveying system, plate chain conveying vehicle assembly system. The whole line adopts the single-piece flow pull production mode, which can be combined with the MES system to monitor the operation of the whole line in real time to ensure the continuous and efficient operation of the whole line.
    CIMC LINYU 16m3 8x4 Electric Concrete Mixer Truck for Smooth Construction Operations
    Product Paramenters


    Vehicle and chassis parameter
    verall dimensions (mm)
    10285×2550×3995
    Chassis Brand
    Can be customized
    Engine type
    Can be customized
    Emission Standards
    National Ⅱ Ⅲ Ⅳ Ⅴ
    Curb weight/rated load weight(kg)
    14000/16870
    Wheelbase(mm)
    1850+3000+1350
    Approach / departure angle(°)
    19/18

    Mounted concrete mixer parameter
    Feed speed(m3/min)
    ≥3
    Discharge speed(m3/min)
    ≥2
    Discharge residual rate(%)
    ≤0.5
    water supply system
    Air pressure water supply
    Water tank volume(L)
    450
    Tips:
    1. This parameter only shows one standard model for your reference.
    2. Our products are compatible with various truck chassis popular around the world.
    3. If you have customization requirements, please do not hesitate to click to contact us.
    4. We also provide special complete vehicles and various mounted tank trailer.
