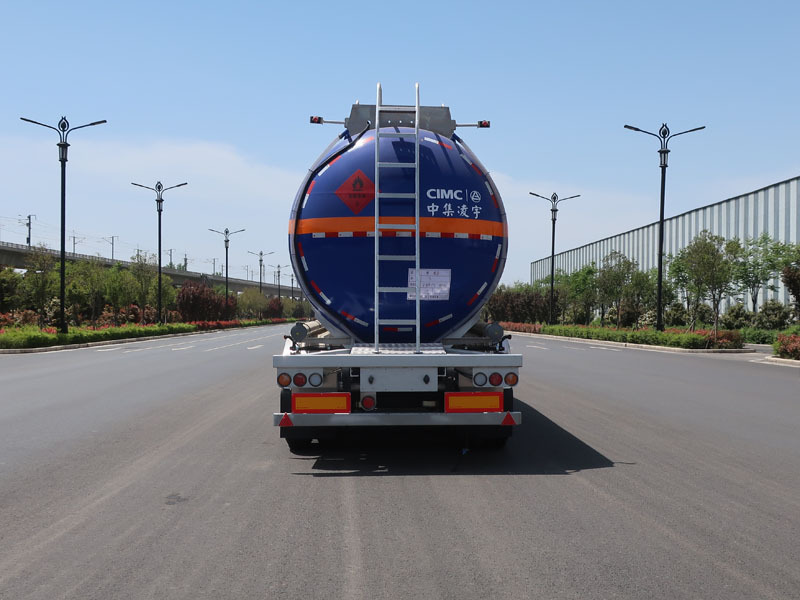

Insulation 45.5m3 3 Axles Flammable Liquid Semi Trailer for Liquid Transport Vehicle

Ask Lasest Price
Brand Name :	CIMC LINYU
Price :	$16,200.00/units 1-4 units

Add to Cart

Product Details
Company Profile

Insulation 45.5m3 3 Axles Flammable Liquid Semi Trailer for Liquid Transport Vehicle

Product Description

Specification

item	value
Use	Truck Trailer
Type	Semi-Trailer
Material	Steel
Size	1260025003950*3750
Max Payload	>30000 kg
Place of Origin	China
	Henan
Brand Name	CIMC LINYU
wheelbase(mm)	6800+1350+1350
Gross mass(KG)	40000
Kerb mass (KG)	6500
Tank volume (m³)	45.5
Tanker material	aluminium alloy
Transport medium	classic 3
Remark	3-axis circular reduction, insulation

Product overview

Linyu Series liquid tank is a new high standard light weight tankers made of stainless steel，carbon steel and aluminum alloy.
The tank models include oil tanker, chemical liquid carrier, flammable liquid carrier, food carrier. Referred Europe FFB and the United States the HEIL style, and combined with the domestic market demand, the tank was re-designed based on finite element analysis. The main parts of the tank: shell cover and anti-wave plate adopted better anti-resistance folding dish structure.
Depending on the different stress in different parts of the tank, using different thickness steel, we ensure the lightest under the relevant standards and safety.
With unique shape and appearance, Linyu series liquid carrier adopted blast pretreatment process on structure parts. Using special tank tooling fixtures and in conjunction with the automatic protection welder, painting entirely in accordance with the requirements of the luxury passenger bus painting technology standards, the tank body appearance is beautiful same as bus, and the quality reached industry-leading level. Owned over 20 patents technology, the products conformed to international standards. With the reasonable compatibility, reliable performance, cost-effective, stable quality, the products can meet the differences in demand.

Liquid transport vehicle (semi) features

Advanced design: Finite element analysis method is used to establish the stress analysis model of all working conditions and
lightweight design, so that the strength and stiffness of the tank are optimized under lighter conditions; Anti-shock structure:
the dish-shaped anti-wave plate in the tank can effectively scatter the shock wave around, reduce the local stress of the
anti-wave plate, and protect the tank. According to the medium and road conditions, the wave plate adopts the dense arrangement
method to make the tank body more evenly stressed. Reinforcing ring structure: stainless steel tank external reinforcing structure
is unique in China; Full bearing frame, tank to bear most of the load, the vehicle weight is lighter, tank is not easy to deform,
more economical, more safe. Professional production: Domestic advanced 13m automatic TIG welding machine, PLC programmable control
technology, a can forming process: reduce weld, high strength, smooth appearance, stable vehicle performance; Patent connection:
The frame and walking mechanism adopt the world's latest generation Huck BobTail fastening system to achieve the highest
performance, safe and reliable connection of key parts; Safety and environmental protection: explosion-proof manhole, emergency
cut off bottom valve (submarine valve), breathing valve, tank top coiling, sealing harness, oil and gas recovery and a series of
safety devices, anti-roll, anti-collision, fire resistance, while improving loading efficiency, safety and environmental
protection.
