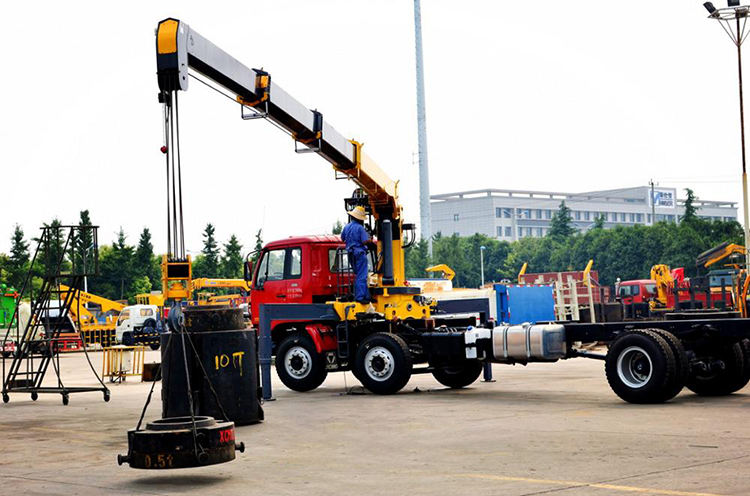

    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm

    Product Description
    China Supplier SQ10SK3Q 10 ton construction telescopic boom truck mounted crane
    1,Throttle Control System
    Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

    2, End position automatic hook device
    Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

    3, Hoisting overwinder device
    If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in
    time, to prevent the safety of personal and property caused by fracture of wire rope.

    4, Slewing locking device
    Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.

    5, Dual pump converging
    The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of crane.

    6, Torque limiter
    It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting
    operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    Specification
    Item
    Units
    SQ10SK3Q
    Max lifting capacity
    kg
    10000
    Max lifting capacity
    T.m
    25
    Recommend power
    kW
    30
    Max oil flow
    L/min
    63
    Max pressure
    mpa
    26
    Oil Tank Capacity
    L
    160
    Crane weight
    kg
    3800
    Installation space
    mm
    1150
    Rotation angle
    degree
    360
    Max extension length
    mm
    12000
    Max lifting height
    mm
    12500
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
    10 Ton Telescopic Boom Truck Mounted Crane and with Outrigger Span of 2280-5580mm
