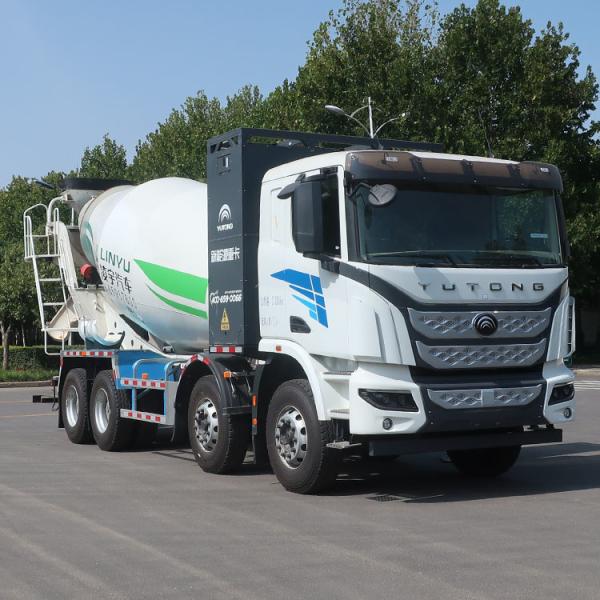

Electric Concrete Mixer Truck YuTong Chassis Nation IV V 12 18 Cbm for Construction Site

Ask Lasest Price
Brand Name :	CIMC LINYU
Model Number :	CLY5310GJB32BEV2,CLY5310GJB32BEV3,CLY5310GJB32BEV4
Price :	USD26899-52799/unit
Payment Terms :	L/C, T/T
Supply Ability :	20000unit/year
Delivery Time :	45

Add to Cart

Product Details
Company Profile

Electric Concrete Mixer Truck YuTong Chassis Nation IV V 12 18 Cbm for Construction Site

Product description:CIMC Linyu series concrete mixer trucks cover all products in the mixing industry. The chassis adopts the special chassis of cement concrete ready mixer trucks of major truck brands in the world. Different upper parts manufacturing solutions are customized according to different chassis requirements to achieve the best matching of the whole vehicle and truly achieve the widest range of products. Electric Concrete Mixer Truck YuTong Chassis Nation IV V 12 18 Cbm for Construction Site

Product Introduction

1.Professional design, Higher quality

The tank body adopts an innovative isometric design, with a lower center of gravity and larger capacity; the material can be selected from low-alloy high-strength structural steel, high-strength steel, and high-performance wear-resistant steel, and the service life is twice that of general manufacturers. Patent number: ZL200820069340.X

2.Special steel, Multi phase stirring

Blades use a "The corrected logarithmic spiral curve" for multi-phase 3D stirring, with fast feed/discharge, good concrete homogeneity, minimal accumulation, and <0.5% residual. Cold-pressed from a special mold, they're made of the same wear-resistant material as the cylinder, ensuring synchronous wear and a lifespan over 150,000m³. Patent number: ZL200820069338.2

3.Multiple configurations, More intelligent

It can be equipped with intelligent systems such as electronically controlled constant speed, intelligent anti-collision, intelligent weighing, remote control, waterway metering, tank mouth sealing, etc., which can reduce the labor intensity of operators and effectively improve the convenience and safety of vehicle use.

4.Humanized design, More safer

①Equipped with a high-power rear work light for safe nighttime construction, ensuring personnel and vehicle safety.

②Anti-slip steps and knurled handrails ensure safe footing and grip. Arc-shaped side guards with rubber sealing strip enhance safety.

③Clear warning signs on the body prevent misoperation

Smart Factory, Ensure Product Quality

1.LASER CUTTING

Laser cutting replaces the original "shearing, cutting, drilling, cutting and grinding" processes to achieve precise cutting;
small error, high precision, energy saving and consumption reduction, environmental protection and no pollution.

2.INTELLIGENT WELDING

Through the automatic feeding system + 3D laser tube cutting machine, a series of production processes such as automatic tube
feeding, cutting, coding, unloading and conveying are realized.

3.AUOMATIC PAINTING

Connect the left and right stations in an orderly series through the suspension conveying method, the automatic heavy conveying system and intelligent central control inter connection system, and realize the automatic and intelligent electrostatic powder spraying on the special vehicle.The production cycle is shortened by 90.6%, organic volatile matter is "zero emission".

4.INTELLIGENT FINALLY ASSEMBLY

This line is divided into three systems: AGV intelligent transfer system, ground drag chain conveying system, plate chain conveying vehicle assembly system. The whole line adopts the single-piece flow pull production mode, which can be combined with the MES system to monitor the operation of the whole line in real time to ensure the continuous and efficient operation of the whole line.

Product Paramenters

Vehicle and chassis parameter	verall dimensions (mm)	10285×2550×3995
	Chassis Brand	Can be customized
	Engine type	Can be customized
	Emission Standards	National Ⅱ Ⅲ Ⅳ Ⅴ
	Curb weight/rated load weight(kg)	14000/16870
	Wheelbase(mm)	1850+3000+1350
	Approach / departure angle(°)	19/18
Mounted concrete mixer parameter	Feed speed(m3/min)	≥3
	Discharge speed(m3/min)	≥2
	Discharge residual rate(%)	≤0.5
	water supply system	Air pressure water supply
	Water tank volume(L)	450
Tips: 1. This parameter only shows one standard model for your reference. 2. Our products are compatible with various truck chassis popular around the world. 3. If you have customization requirements, please do not hesitate to click to contact us. 4. We also provide special complete vehicles and various mounted tank trailer.
