Displacement 11.6L 375hp Shacman F3000 X3000 8x4 30t Payload Dump Truck Tipper Truck

Ask Lasest Price
Brand Name :	Shacman
Price :	$17,000.00/units 1-9 units

Add to Cart

Product Details
Company Profile

Displacement 11.6L 375hp Shacman F3000 X3000 8x4 30t Payload Dump Truck Tipper Truck

We sell all the following types of new and used trucks

We guarantee that every new truck and used truck has high quality and good performance. Ensure that every customer is satisfied.
You can choose the type you want, and we can customize dump trucks with different loading weights and volumes according to customer requirements.

New And Used Various Types Dump Truck
Type of Vehicle : new and used dump truck	Horsepower : 336hp,371hp,375hp,380hp,420hp，etc.
Truck Brand : Sinotruk Howo, Shacman, faw, etc.	Drive form : 6x4,6x2,4x2,8x4
Driving Position : Left or right hand drive	Tire Type : 12.00R20 or 12.00R22.5
Fuel tanker capacity : 400L-600L , Diesel	Loading Weight : 20-50 Ton
Fuel Consumption : 30L/100km	Emission : EURO 2, EURO 3, EURO 4,EURO 5
Cargo Body Size : 5600x2300x1500mm	Color : Optional (Red, yellow, white, green, blue, etc.)

Products Description

Displacement 11.6L 375hp Shacman F3000 X3000 8x4 30t Payload Dump Truck Tipper Truck

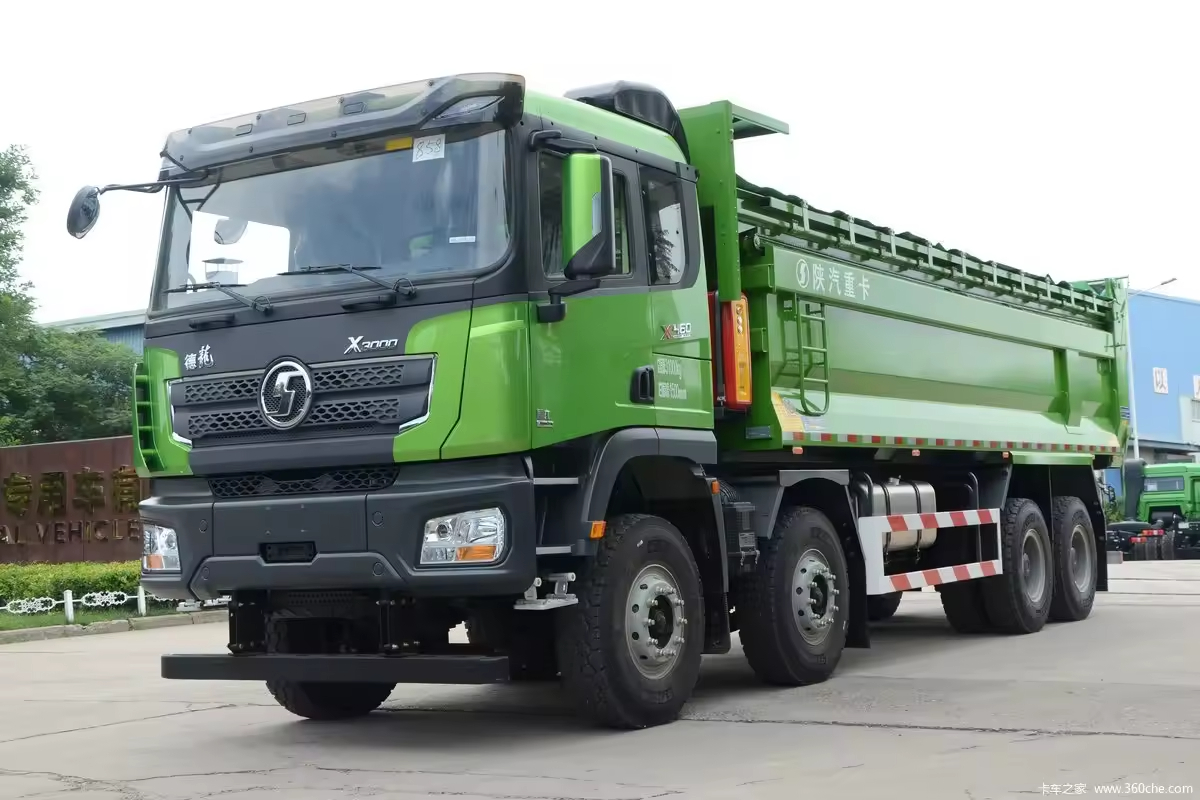

Shacman 8X4 Dump Truck

1) WECHAI 460 HP Engine

2) MAN Technolodgy Axles

3) Stong , Effecient and Heavy Load

Details Images

--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).

--Strong Body: 8MM Thick Box, Thickened bottom plate, More strong anti-weight.

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.

--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Heavy-duty five-leaf spring: MAN Technolodgy heavy-duty axle for transporting gravel loads.

--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.

--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

♥Dear friends, before the sale, we will fully understand your needs, according to your machine requirements and your budget, choose the right model for you, to ensure that you buy high-quality products at a lower price.

☎If you want to know the product, price, or a quotation you want , please send us an inquiry, and we will reply to you as soon as possible to solve your problem.

Product Paramenters

Max. running speed (km/h) 最高车速				82
Drive System 驱动形式				8×4
Dimensions （LWH）(mm)		Overall 外部尺寸	10635×2490×3790
		Dump body 内部尺寸	7800×2300×1500+200
Thickness (mm) 厚度				Bottom 12, side 8 底12边8
Hydraulic lifting system 液压举升系统				Ф200 Before the lifting Ф200前举
Approach / departure angle (°) 接近角/离去角				28 / 20
Kerb weight (kg)自重				15500
Total mass (kg)总重				31000
Wheel base (mm) 轴距				1800+3575+1400
Engine 发动机				WEICHAI WP12.400E201 Euro Ⅱ 潍柴动力欧2排放
Horsepower 马力				460 hp
Gearbox 变速箱				FAST 12JSXD240T
Clutch 离合器				Ф 430 Diaphragm type Ф 430膜片离合式
Steering 转向机				ZF technology
Cab 驾驶室				F3000 mid-lengthened Cabin with single-sleeper F3000中长平顶驾驶室带单卧铺
Axle 桥	Front axle前轴		9.5T MAN
	Rear axle 后桥		16Ton MAN axle, final ratio 5.262 16吨曼双极桥，速比5.262
Tyre (radial tyre) 轮胎（钢丝胎）				12.00R20（12+1 备胎）
Oil tank 油箱				300L(Metal) 300L金属油箱
