Henan Tarzan Heavy Industry Group Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | SINOTRUCK |
| Supply Ability : | 5000 Unit/Units per Quarter |
| Price : | $10,856.00/units 1-4 units |
Basic information | ||||||
Announcement type: | ZZ3317V326GF1 | Driving form: | 8X4 | |||
Wheelbase: | 1950+3225+1350mm | Engine: | Sinotruk MC11.44-60 | |||
Transmission: | Sinotruk HW25712XSL | Rear axle speed ratio: | 5.26 | |||
Body length: | 9.58m | Body width: | 2.55m | |||
Body height: | 3.55m | Front wheel base: | 2022/2022mm | |||
Rear wheel base: | 1860/1860mm | Vehicle weight: | 15.5 tons | |||
Rated load: | 15.37 tons | Total mass: | 31 tons | |||
Tonnage class: | Heavy truck | Approach Angle: | 17 degrees | |||
Departure Angle: | 21 degrees | |||||
Engine parameter | ||||||
Engine type: | Sinotruk MC11.44-60 | Engine brand: | Sinotruk | |||
Number of cylinders: | 6 | Type of fuel: | Diesel oil | |||
Displacement: | 10.518 L | Emission standard: | Six kingdoms | |||
Maximum horsepower: | 440 horsepower | Maximum output power: | 324kW | |||
Maximum torque: | 2100 n. m | Maximum torque speed: | 1000-1400rpm | |||
Rated speed: | 1900rpm | Engine form: | High voltage common rail +EGR+SCR | |||
Container parameter | ||||||
Length of container: | 6.5 m | Width of container: | 2.35m | |||
Container height: | 1.5m | Container form: | Self-discharging type | |||

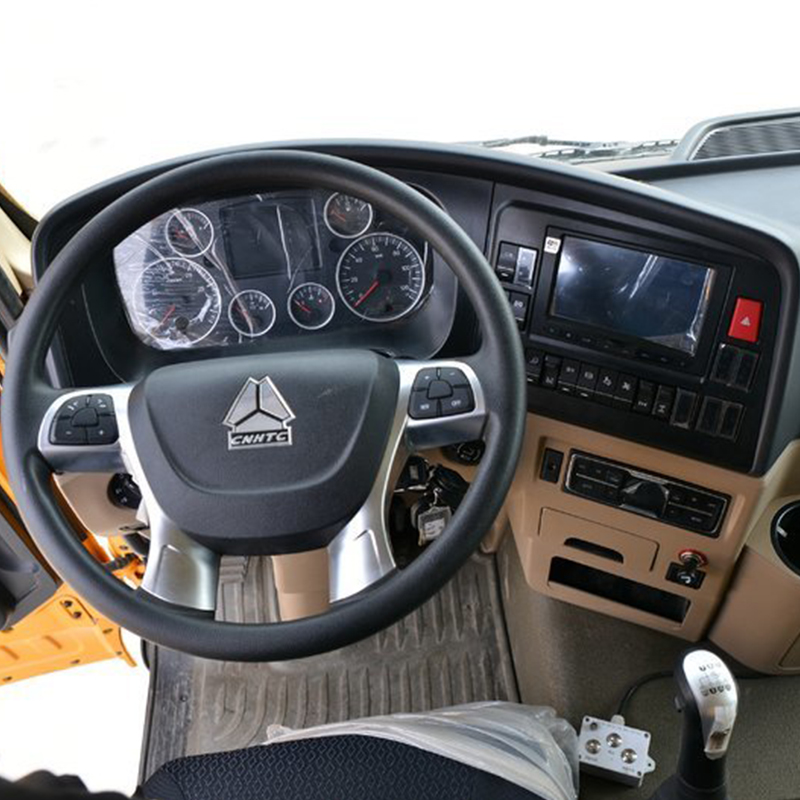

Cab parameters | ||||||
Main driving seat form: | Airbag cushioning seat | |||||
Transmission parameter | ||||||
Transmission model: | Sinotruk HW25712XSL | Transmission brand: | Sinotruk | |||
Forward gear: | 12th gear | Number of reversals: | 2 | |||
Oil tank | ||||||
Fuel tank material: | Aluminium alloy | Tank capacity: | 400L | |||
Chassis parameter | ||||||
Allowable load of front axle: | 6500/7000kg | Rear axle allowable load: | 17500(biaxial group)kg | |||
Number of spring pieces: | 4/4/12, 11/11/12 | |||||
tyre | ||||||
Tire specifications: | 12.00 R20 | Number of tires: | 12 | |||
|
|
