产品名称及型号
Product name and model | EQ2190 | | 驱动方式
Drive mode | 6×6，LHD |
尺寸参数
Size parameters
| 外形尺寸 长×宽×高(mm)
Overall dimensions: length×width×height(mm) | | 8830×2550×3050 | |
| 轴距（mm）
Wheel base（mm） | | 4500+1350 | |
| 前悬/后悬(mm)
Front overhang /Rear overhang (mm) | | 1430/1600 | |
质量参数
Mass parameter | 整备质量(kg)
Unladen mass (kg) | | 8450 | |
| 总质量(kg)
Gross mass(kg) | | 19000 | |
发动机
Engine | 型式及类别
Model and variety | | 玉柴直列六缸、水冷涡轮增压柴油发动机/中冷,260hp
Yuchai Straight 6-cylinder diesel engine, Water
cooling/turbocharged/inter-cooling,260hp | |
| 型号
Model | | YC6A260-33 | |
| 排量（ml）
Discharge capacity（ml） | | 7255 | |
| 燃料种类
Fuel type | | Diesel | |
| 最大扭矩(N.m)
Maximum torque /speed (N.m) | | 1000/1400～1600 | |
| 额定功率
Rated power | | 191/2300 | |
| 最高车速
Max Speed | | 85 Км/h | |
离合器
Clutch | 型号及型式
Model and type | | 推式、膜片弹簧离合器
Monolithic pull diaphragm clutch | |
| 操纵方式
Control mode | | 液压远距离操纵
Hydraulic remote control | |
| 离合器盘直径(mm)
Clutch disc diamete (mm) | | ¢430 | |
变速箱
Transmission | 型式
Тype | | 陕齿8档箱,机械式
8JS118T-B,mechanical | |
| 前进档位数
Forwardgear digit | | 8 | |
| 速比
Ratios | | Ⅰ11.4 Ⅱ7.94 Ⅲ5.63 Ⅳ4.06 Ⅴ2.81 Ⅵ1.96 Ⅶ1.39 Ⅷ1.00 RL11.35 | |
分动箱
Auxiliary box | 型号
Model | | 机械式 ZQC1200
ZQC1200mechanical | |
| Передаточное число
速比
Speed ratio | | 1.75；1.0 | |
制动系统
Braking system | 行车制动型式
Auto brake type | | 双回路气制动,排气制动
Double circuit air brake system, exhaust brake | |
驾驶室
Cab | 平顶,2门，带空调，带卧铺, 2座
Flat roof/single 2 doors cabin/with AC, 2 persons | | | |
前后桥
Axle | Front | 铸造桥壳，驱动转向桥,6T
Casting welded axle drive steer axle,6T | | |
| 后桥
Rear | 轮边减速双后桥，10T/10T,速比5.921
Wheel deceleration double rear axle,10T, speed ratio of 5.921. | | |
悬架系统Suspension | 前悬
Front | 9片-多片钢板弹簧
9- Multi-plate leaf spring | | |
| 后悬
Rear | 10+8片-多片钢板弹簧
10+8-Multi-plate leaf spring | | |
蓄电池
Battery | 电压 (V)
Voltage (V) | 24 | | |
| 容量(A.h)
Сapacity (A.h) | 165AHX2 | | |
转向
Steering | 动力辅助转向
Power assisted | | | |
传动装置
Transmission | FAST，配有取力器系统
FAST equipped with PTO | | | |

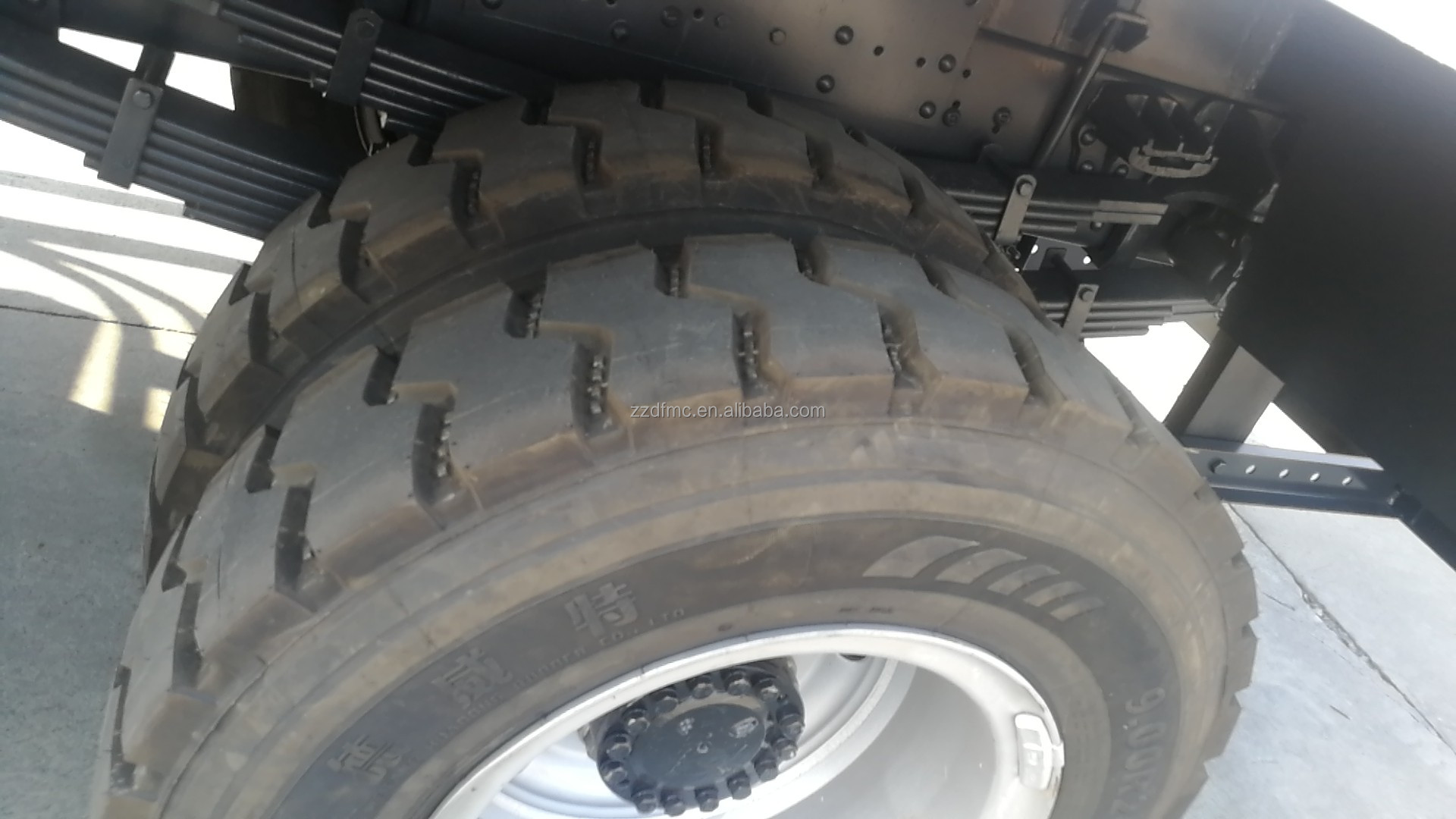

轮胎
Tyres | 12.5R20 6+1备用胎
12.5R20, 6+1, spare | | | |
上装
Upper | 车厢
Cargo box | 侧门与后门可折叠的车厢，5000*2450*700mm
Sides and back folded cargo box,5000*2450*700mm | | |
| 车厢材质
Box material | Q235 | | |
| 车厢型体
Box mode | 长方体型
Cuboid | | |
| 吊臂
Winch | 根据要求可装配6.7吨/11mmx25 m
Equipped,6.7t/11mmx25meters as requested | | |
