sinotruck 6*4 371hp dump truck ESC Electronic Stability Control System None

Ask Lasest Price
Brand Name :	SINOTRUCK
Supply Ability :	100 Unit/Units per Month
Price :	$41,500.00/units 1-2 units

Add to Cart

Product Details
Company Profile

sinotruck 6*4 371hp dump truck ESC Electronic Stability Control System None

Products Description

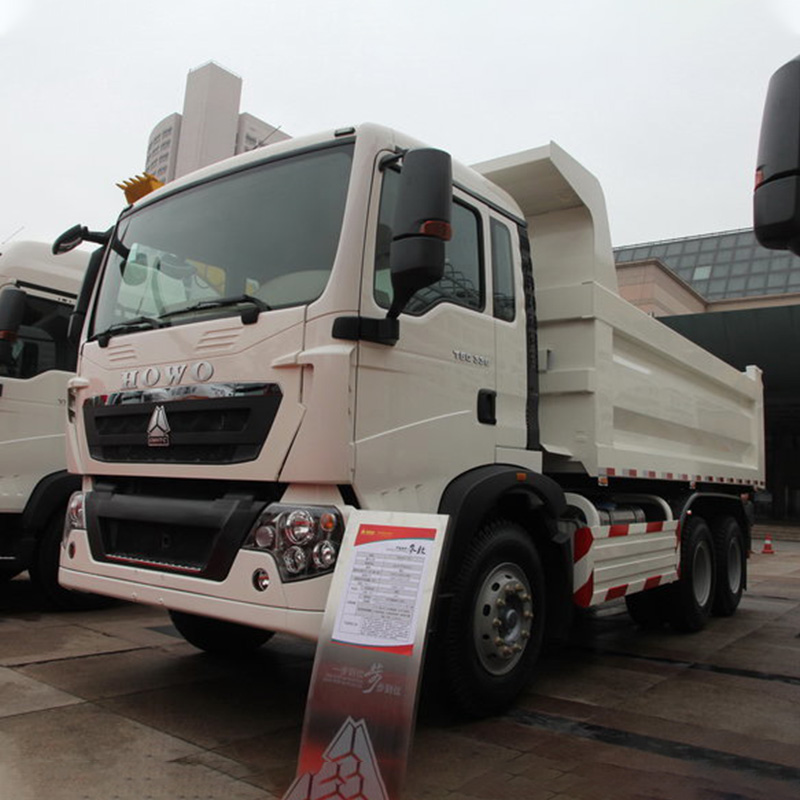

HOWO 6X4 New Dump Truck

Details Images

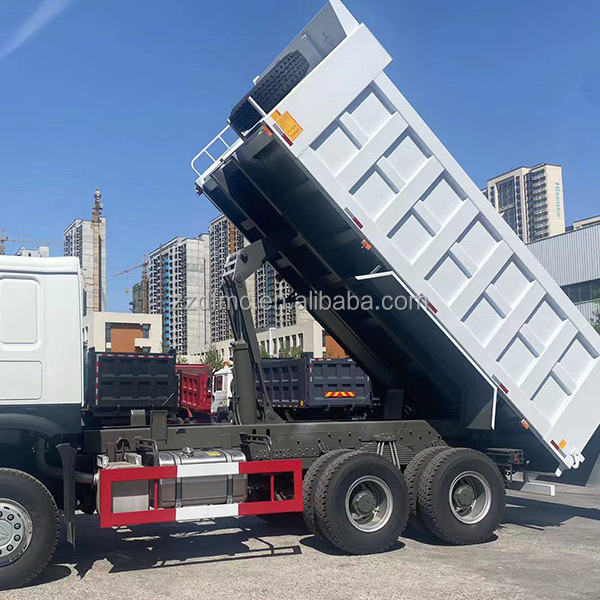

--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).

--Strong Body: 8MM Thick Box, Thickened bottom plate，More strong anti-weight.

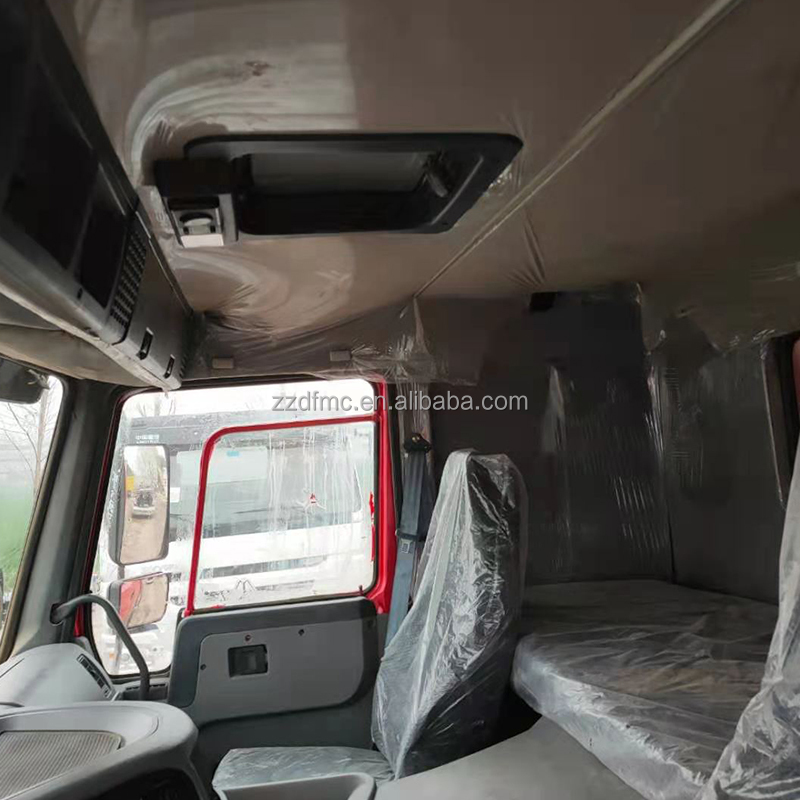

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.

--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Heavy-duty five-leaf spring: heavy-duty axle for transporting gravel loads.

--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.

--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

Product Paramenters

Truck Model							6x4
Truck Brand							SINOTRUCK –HOWO
Dimension(Lx W xH)（unloaded）（mm）							8245x2550x3450 mm
Cargo body size (LWH)							5400 x 2300 x 1500 mm
Cargo body thickness(mm)							bottom:8mm, side:6mm
Lift type of Carriage							Central lifting
Approaching angle/Departure angle（°）							19/23
Overhang(front/rear) (mm)							1500/1870
Wheel base (mm)							3625+1350
Max speed（km/h）							75
Curb weight（kg）							12600
Loading Weight（kg）							25000
Fuel tanker capacity(L)							300L with locking fuel cap
Clutch							Single-plate dry clutch Φ430mm
Engine Model (Steyr technology, made in China)	Model					WD615.47，4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling
		Horse Power					371HP, 9.726L
		Emission					EURO II
		Fuel Type					Diesel
Transmission			Model			HW19710,10 forwards and 2 reverse
Brake system			Service brake			Dual circuit compressed air brake
				Parking brake			spring energy, compressed air operating on rear wheels
				Auxiliary brake			Engine exhaust brake
Steering system			Model			hydraulic steering with power assistance Ratio：22.2-26.2
Front axle			HF9 , Steering with double T-cross section beam Loading capacity:9000KG
Rear axle			HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg
Color			Optional
Tire			12.00R20 Steel tires 10+1 spare
Electrical system			Operating voltage	24V,negative grounded
				Starter	24V,7.35KW
				Alternator	28V,1500W
				Batteries	2*12V.165Ah
				Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Cab			HOWO76 cab
